40% INCREASE IN MILLING PROCESS PRODUCTIVITY:
Full machining - roughing and finishing: 73 hours → 47 hours.
Highest accuracies and maximum surface quality
TOOL AND MOLD CONSTRUCTION. PROSPECT MOLD and FOOKE
"Compared to other milling machines we use, FOOKE machines are characterized by consistent, optimum geometric accuracy and the lowest percentage of unscheduled machine downtime. Even after more than 10 years of cooperation, FOOKE continues to convince and inspire us time and again."
Brandon Wenzlik, Prospect Mold
COMPACT GANTRY MILLING MACHINE
ENDURA® 7012LINEAR
Specially designed for high-performance heavy-duty machining of solid and high-strength materials.
HIGHLY accurate for today's required tolerances in tool making, from roughing to long finishing processes.
MODEL CONSTRUCTION. SIEBENWURST and FOOKE
"The positive and solution-oriented attitude of all FOOKE employees involved in the project convinced us. FOOKE products stand for excellent processing quality Made in Germany. The planning reliability and the very high-quality assurance give us a clear advantage over our competitors."
Stephan Dunke
Team Leader Manufacturing/ CAM MB Model construction
www.siebenwurst.com

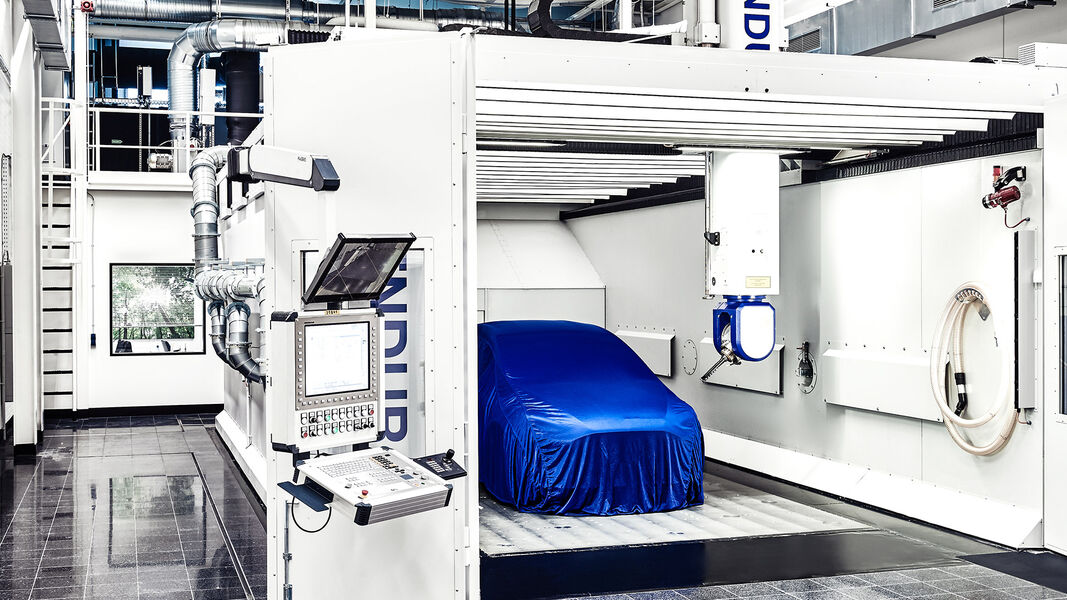

VEHICLE DESIGN
GANTRY MILLING MACHINE
ENDURA® 611LINEAR
Excellent surface qualities with highly dynamic 5-sided machining of large 1:1 design models.
BMW I8 – Aluminum, milled to a piece of art.
Excellent surface qualities in model and mold making
MOLD CONSTRUCTION. AMARI and Fooke
"The performance parameters of the FOOKE machines convinced us. Because they fit our requirements perfectly. We came across Fooke through a recommendation from one of our customers. In the meantime, we have enough experience ourselves to be able to say: Fooke stands for competence, reliability and excellent machine service."
Josef Reiter, CEO
RIM MOLD
MODEL AND MOLD CONSTRUCTION
Reduction of processing time thought FOOKE milling strategies matched to the highly dynamic ENDURA® machine system.
FORMING TOOL - SIDE PART – CASTING
GANTRY MILLING MACHINE
ENDURA® 908LINEAR
Excellent surface qualities.
VEHICLE DESIGN
GANTRY MILLING MACHINE
ENDURA® 904LINEAR
Highly dynamic machining of 1:1 design models.
COMPACT GANTRY MILLING MACHINE
ENDURA® 711LINEAR
With robot system for automatic loading and unloading.
COMPACT GANTRY MILLING MACHINE
ENDURA® 704LINEAR
Optimum accessibility: 5-sided machining of the function side in one clamping.
GANTRY MILLING MACHINE
ENDURA® 905LINEAR
Cubing models for function testing, pilot series or exclusive small series.
TOOL AND MOLD CONSTUCTION
COMPACT GANTRY MILLING MACHINE ENDURA® 704LINEAR
Highly dynamic finishing and high precision rest machining.
TOOL AND DIE. CDM Tool & Manufacturing and FOOKE
"With the decision for a milling machine from FOOKE we have brought new momentum to our process. Less set-up time means more machining time. This enables us to carry out customer orders more economically and productively".
Mike Balderas, New Business & Marketing Manager
TAILGATE – INTERIOR & EXTERIOR
COMPACT GANTRY MILLING MACHINE ENDURA® 7012LINEAR
Versatile machine parameter settings and the optimum machine dynamics adapted to your machining task.
Automotive
Different times, different requirements
What used to be only possible through great manual skill, is now done to perfection by modern machine tools.
Surface quality and precision - these are the requirements of model, prototype and tool and mold making. Different materials, from rigid foam to alloyed tool steel, must be machined efficiently and reliably on one machine. FOOKE offers high-performance, highly dynamic 5-axis milling machines for this purpose.
Models and prototypes in particular, but also tools and molds, are now machined linearly with the narrowest path distances. Partly in the classic 3+2 operation and increasingly also 5-axis simultaneous. In this type of machining, the programmed feed rate must be kept almost constant and at the same time at the highest level. Maximum rigidity of the machine structure elements and the feed drives are the basis for the best surface qualities and accuracies with outstanding productivity.
What makes us proud
Some of our references in Vehicle design
Prototyping - Model and mold construction - Tool construction - Jig and gauge making - Cubing
ALFA ROMEO F1 │ AUDI │ ASTON MARTIN F1 │ BMW │ BERTRANDT │DAIMLER │ EDAG │ FORD │ FRIMO │ HONDA │ KRAUSSMAFFEI TECHNOLGY │ MERCEDES-BENZ │ MERCEDES BENZ FORMULA 1 │ PORSCHE │RED BULL RACING │ SAIC VOLKSWAGEN AUTOMOTIVE │ SALZGITTER AUTOMOTIVE ENGINEERING │ SAUBER GROUP │ SCHÄFER │ SIEBENWURST │SILBERFORM │ TOYOTA │ VOLKE │ VOLKSWAGEN │…
FOOKE Product range
Compact Gantry Milling Machine
ENDURA® 400LINEAR
- NEW - highly efficient for plastics processing
- Large machining area, small installation surface, can be set up without foundations
- Direct drive motors in all axes (linear and torque motors)
- High structural rigidity, highest dynamics and best accuracies
- Easy transport and short commissioning due to compact machine design
- Consistently high precision due to temperature stability of the machine structure
- Travels up to 2,700 x 3,000 x 1,200 mm
- Range of materials: plastics, CFRP/GFRP, modeling block material, aluminum
Gantry Milling Machine
ENDURA® 600LINEAR
- Very spacious machining area
- Loading at ground level
- Optimal dust extraction and chip conveyor concepts
- Direct drives in all axes (linear and torque motors)
- Entry model for 1:1 processing in vehicle design
- Individual concepts for highest accuracies of large-scale components in aviation
- Excellent productivity in the machining of multi-purpose large workpieces
- Customized solutions for clamping technology and suction systems
- Individual axis length configuration
- Travels up to 30,000 x 3,500 x 2,300 mm
- Range of materials: plastic, CFRP/GFRP, model building block material, aluminum
Compact Gantry Milling Machine
ENDURA® 700LINEAR
- Our bestseller! Proven since 2004, continuously optimized
- Large machining area, small installation surface, can be set up without foundations
- Direct drive motors in all axes (linear and torque motors)
- High structural rigidity, highest dynamics and best accuracies
- Easy transport and short commissioning due to compact machine design
- Consistently high precision due to temperature stability of the machine structure
- 5-sided machining of all common automotive components
- Highly efficient productivity in the machining of aluminum components
- Modular design allows extension of X travel as XL version
- Thermal decoupling of short-term temperature fluctuations by Thermo Guard
- Travels up to 5,500 x 3,500 x 1,500 mm
- Range of materials: plastics, CFRP/GFRP, modeling block material, aluminum, cast iron, steel
Compact Gantry Milling Machine
ENDURA® 7000LINEAR
- For high-performance heavy-duty machining of high-strength materials
- Large machining area, small footprint, foundationless installation
- Thermosymmetrical machine concept
- High structural rigidity, highest dynamics and outstanding accuracies
- Material range: steel, cast iron and aluminum
- Direct drives in all axes (linear and torque motors)
- Travels up to 6,000 x 4,500 x 1,500 mm
- Range of materials: steel, cast iron and aluminum
Ganty Milling Machine
ENDURA® 900LINEAR
- Highly dynamic, for universal applications
- Direct drives in all axes (linear and torque motors)
- Excellent structural rigidity, highest dynamics and accuracies
- Very large enveloped machining area
- Market leader in 1:1 machining in German automotive design
- Perfectly matched machine concept for productive end-to-end machining from aluminum to steel
- Now also available in compact design
- Travels up to 30,000 x 4,500 x 3,000 mm
- Range of materials: plastic, CFRP/GFRP, modeling block material, aluminum, cast iron, steel
Compact Gantry Milling Machine
ENDURA® 900LINEAR
- Large machining area, small installation surface, can be set up without foundation
- Direct drive motors in all axes (linear and torque motors)
- High structural rigidity, highest dynamics and accuracies
- Thermal decoupling of short-term temperature fluctuations by Thermo Guard
- Travels up to 5,500 x 3,500 x 1,500 mm
- Range of materials: steel, cast iron and aluminum
Longbed Profile Milling Machine
ENDURA® PRO LINEAR
- Specialist for stringer and profil machining
- Highly dynamic 5-axis machining of long workpieces
- Material removal rates up to 11.0 l/min
- Flexible workpiece clamping systems
- Ergonomic loading
- Two-station component machining for process-parallel loading
- Monobloc machine bed design, modularly expandable
- Encapsulated machining area by bullet-proof lamellas
- Travels up to 60,000 x 3,100 x 1,500 mm
- Range of materials: aluminum, composites (CFRP/GFRP)
Travelling Column MIlling Machine
ENDURA® 1000LINEAR
- Specialist or large volume workpieces
- Ergonomic loading
- Travelling operator cabin for optimal process monitoring
- Traveling tool changer
- Market leader in the machining of aluminum profiles for the rail technology
- Individual clamping concepts and fixtures on customer request
- Available with mechanical drive components or modern linear motor drives
- Three-station component machining for process-parallel loading and unloading
- FSW retrofit solution for friction stir welding with max. axial force of 25 kN
- Travels up to 60,000 x 4,500 x 2,100 mm
- Range of materials: plastic, CFRP/GFRP, aluminum, cast iron, steel
Plate Milling Machine
ENDURA® 800
- Face milling machine for large aluminum precision plates
- Highest accuracies due to extremely rigid machine structure
- Finish operation in one milling process
- Ergonomic loading
- Surface quality < 0.4 µm
- Milling tool up to Ø 3,100 mm
